GHL touch control unit for the ProfiLux 4 - Control Pad (GCP)

Product no.: 146100

This Product is expected to be on stock again on 01/02/2026

GHL Touch Control Pad for the ProfiLux 4 - Control Pad (GCP)

About the GHL Control Pad:

The GHL Control Pad is a dedicated touch control unit for the ProfiLux 4 and was developed for quick, direct access right at the aquarium.

• Direct connection to the ProfiLux 4 (no cloud, no smartphone required)
• Clear, responsive capacitive touch display
• Instant access to key functions such as measurements, lighting, dosing, and maintenance modes
• Switchable light and dark display (Bright & Dark Theme)

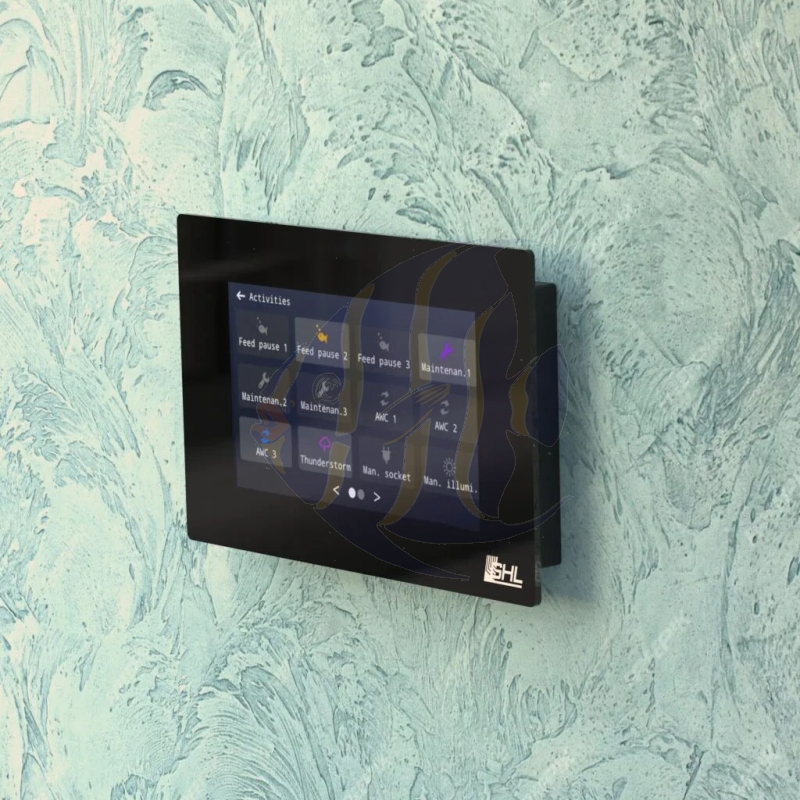

• Ideal for wall mounting or installation in a base cabinet

The Control Pad simplifies daily operation while maintaining the reliability and stability for which ProfiLux systems are known.

--

Technical details:

• 4.3" display
• Capacitive touchscreen
• Bright, high-contrast display
• Glass front panel

Dimensions: 135 × 88 × 20 mm / 5.31 × 3.46 × 0.79" (W × H × D)
--

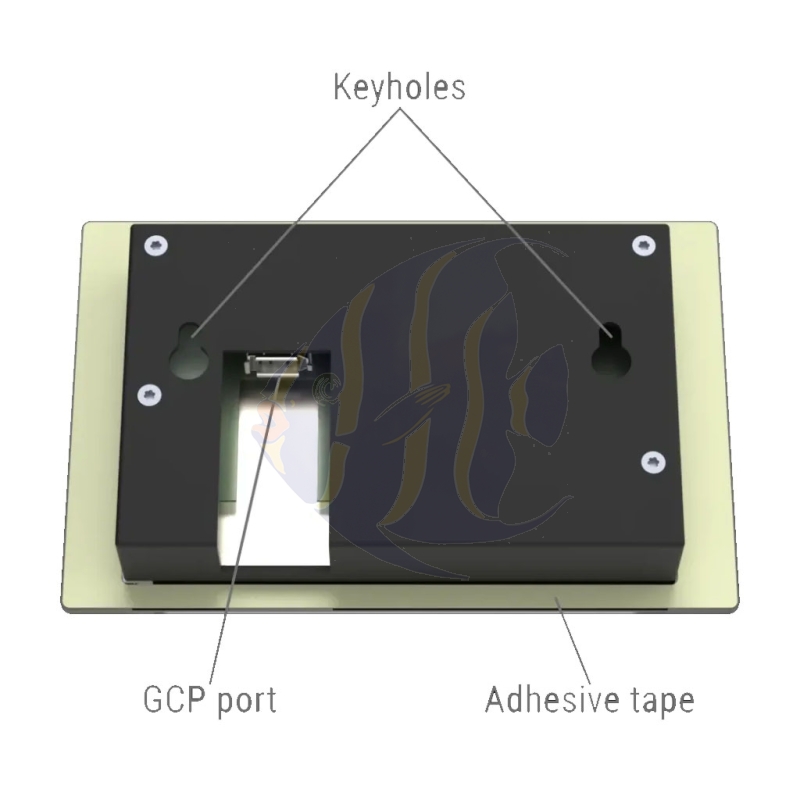

Mounting options:

• Wall or cabinet mounting via integrated keyholes
• Flush mounting with the self-adhesive front frame

Connections & power supply:

• Single cable connection to the control pad connection of the ProfiLux 4 / 4e
• Power supply directly via the ProfiLux (no external power supply required)
• Cable length: 1.8 m / 6 ft

---

Please note that the screens shown are preliminary.
Development is still ongoing, and the final screen content and range of functions may vary depending on the firmware version, settings, and system configuration.
---

Features and highlights

Everything important at a glance – right where you need it.

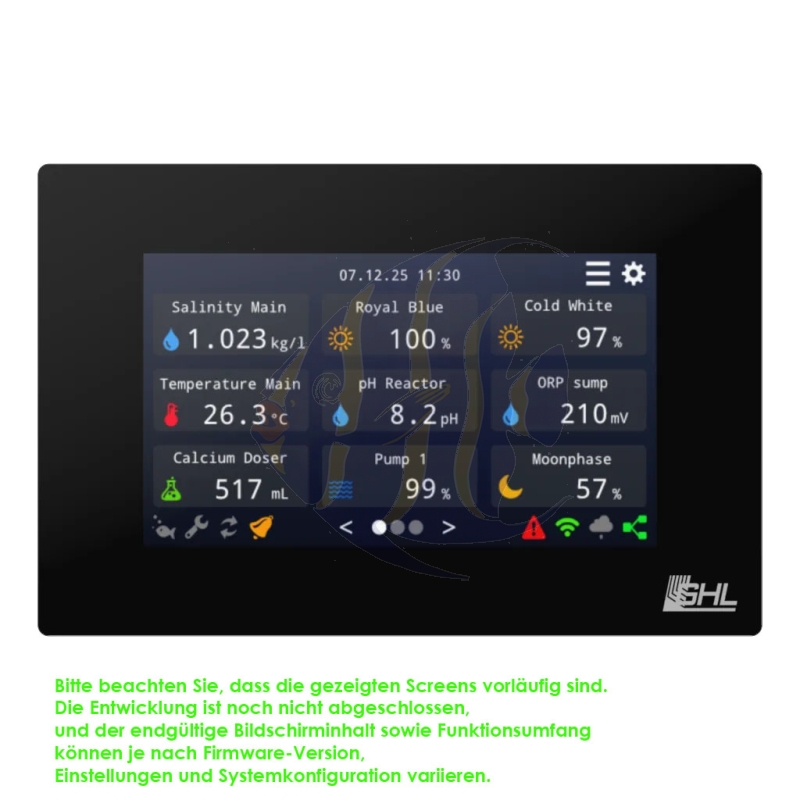

• Customizable status tiles Display important measurements such as temperature, pH, redox, conductivity, fill level sensors, lighting channels, and dosing activities.

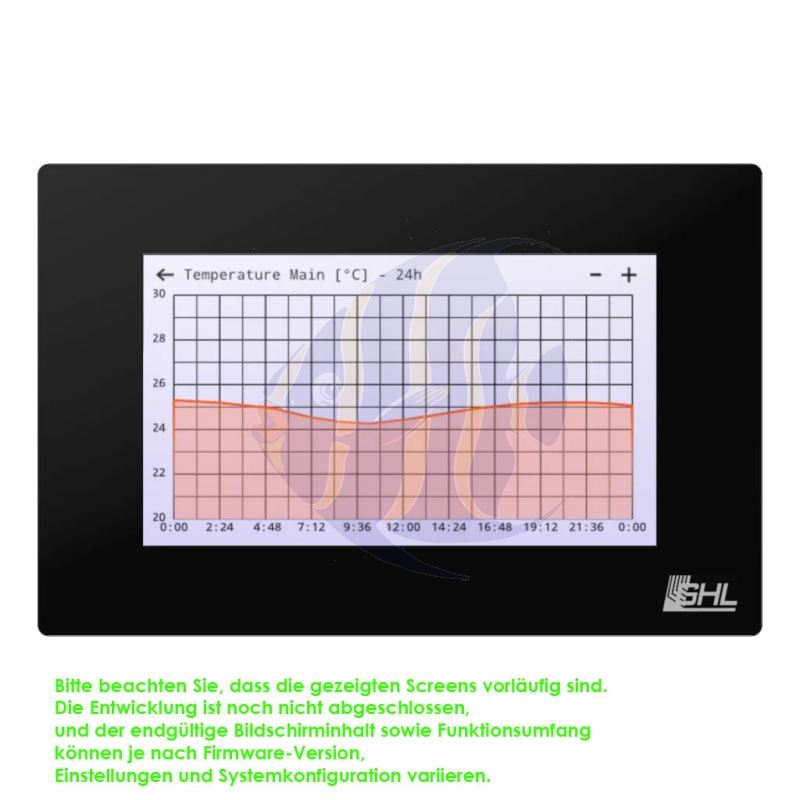

• Graph and history views Analyze trends and measurement curves directly on the display.

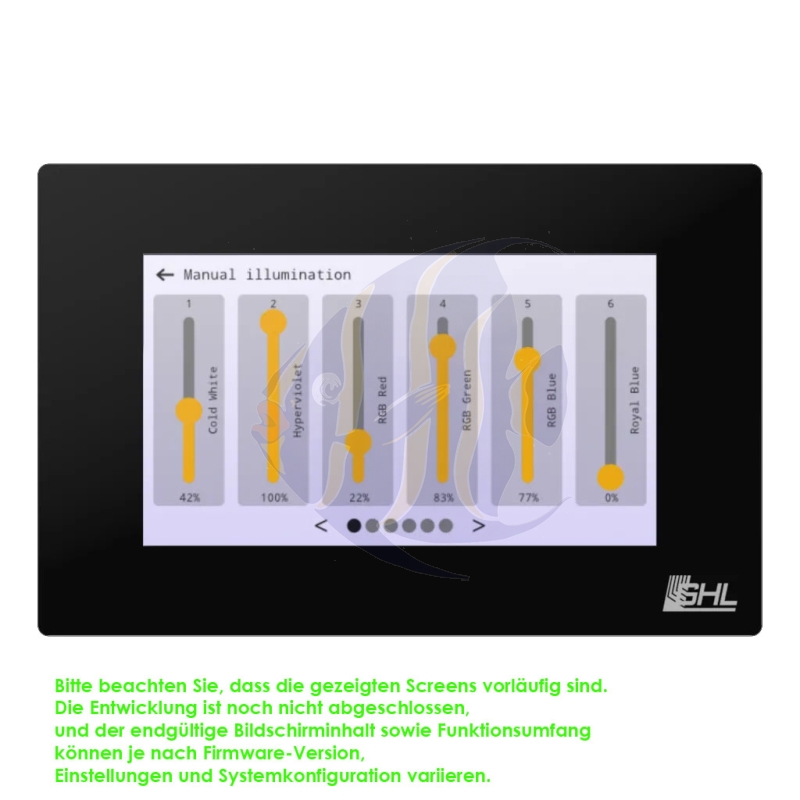

• Adjust the brightness of individual lighting channels and switch sockets on or off.

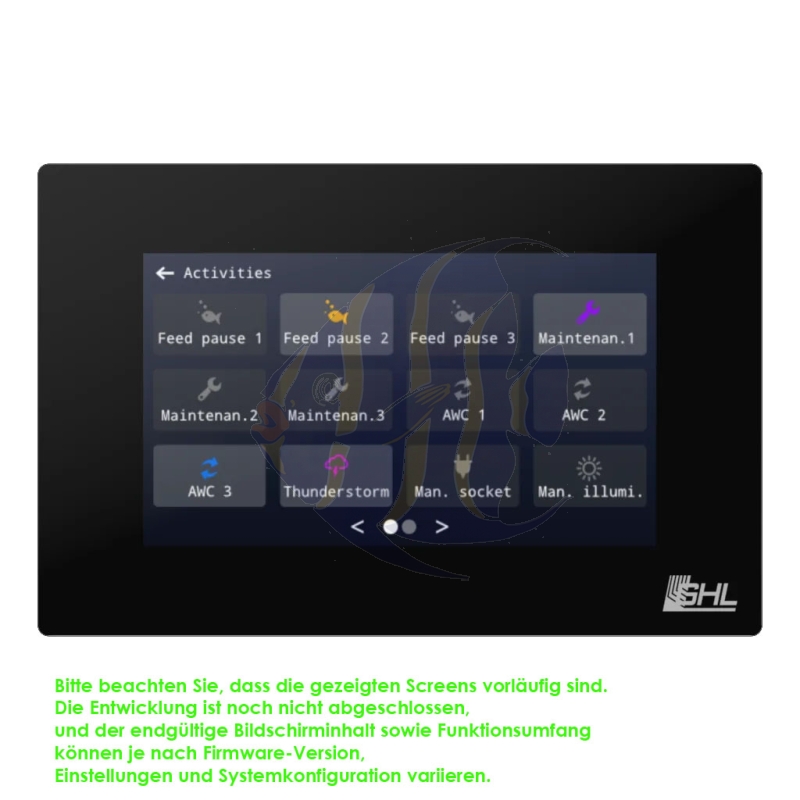

• Quick access for actions Trigger water changes, maintenance mode, thunderstorms, or lighting scenarios with a single touch of a finger.
• ProfiLux menu mirroring Operate the ProfiLux remotely via the mirrored display and virtual buttons.
• Selectable display style: dark or bright theme
• Flexible installation Suitable for wall mounting using integrated keyholes or for flush mounting with the adhesive frame. Power is supplied directly via the control pad connection – no separate power supply unit required.
